Rear Cradle Bushing installation (reference only)
Thanks to Zeemr
Click the images to make them larger
IT IS NOT recommended that anyone use these in place of actual instructions. these are for reference ONLY!
Items needed

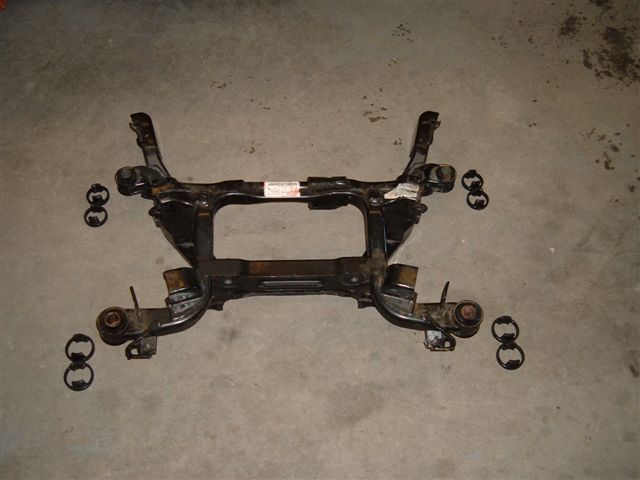

1.Specter (or GM) Rear cradle Bushings
2.Lots of tools

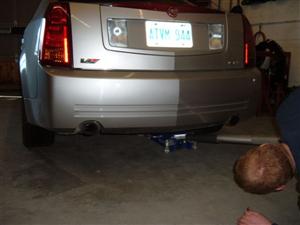

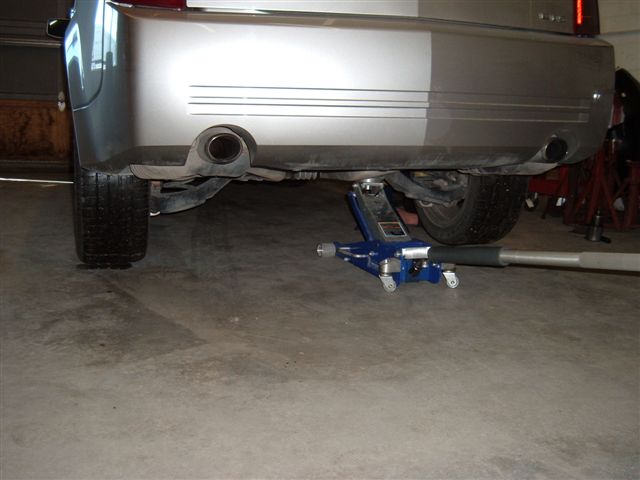

1. Jack rear of car up on level surface Steps (1-3)

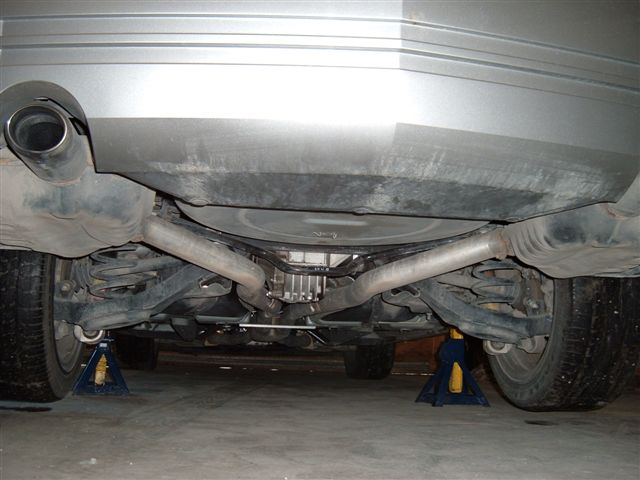

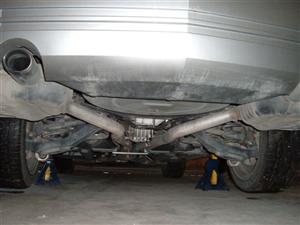

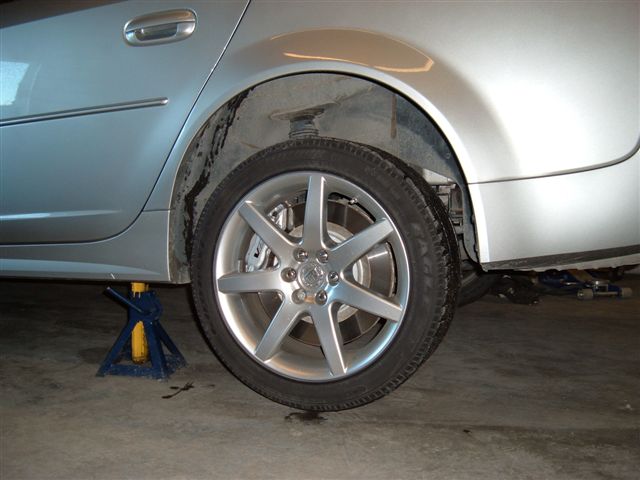

2. Put jack stands under rear of car under frame area. Step (4-5)

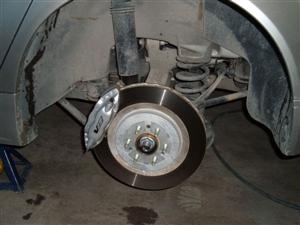

3. Remove rear wheels Step (6)

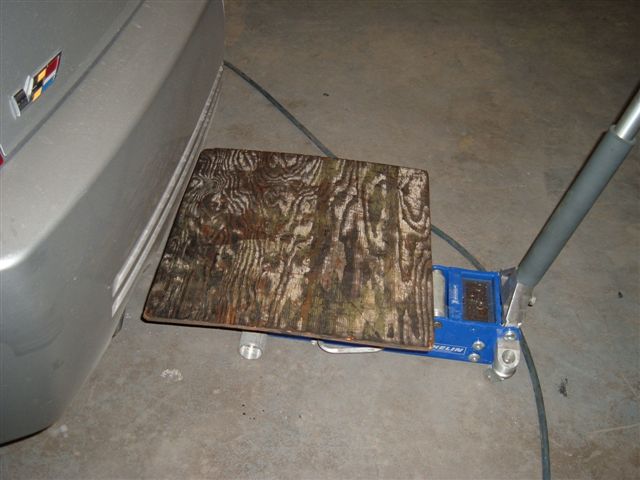

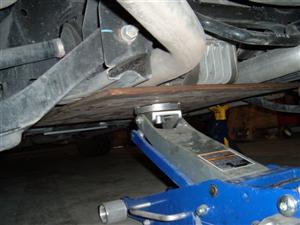

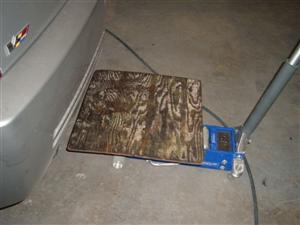

4. Place jack under rear differential of car with a piece of plywood for support Step (7-8)

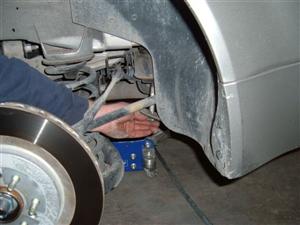

5. Put pressure on jack to support cradle

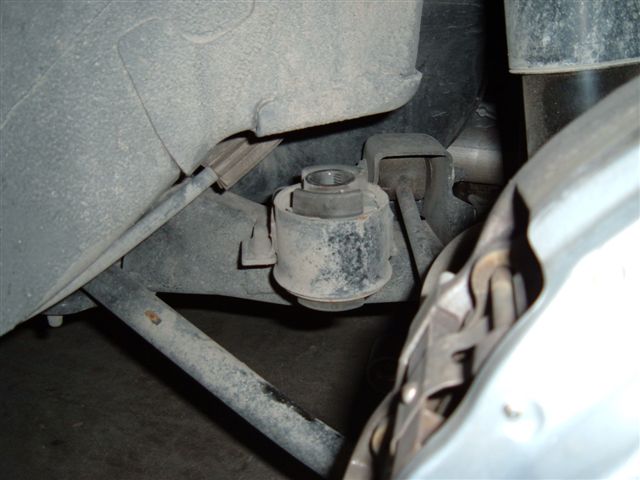

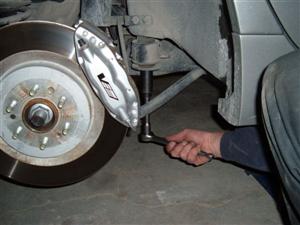

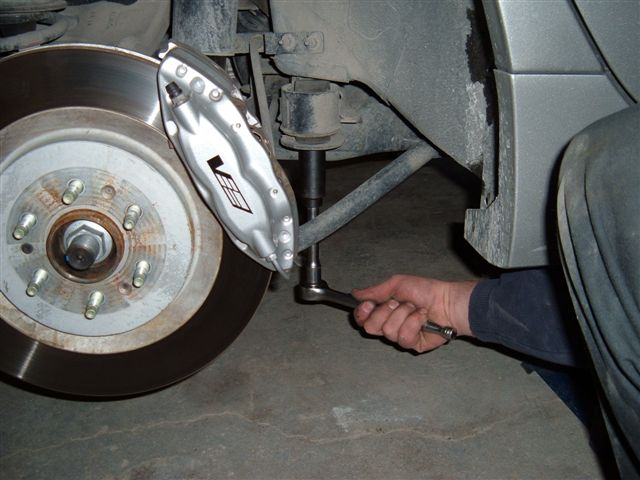

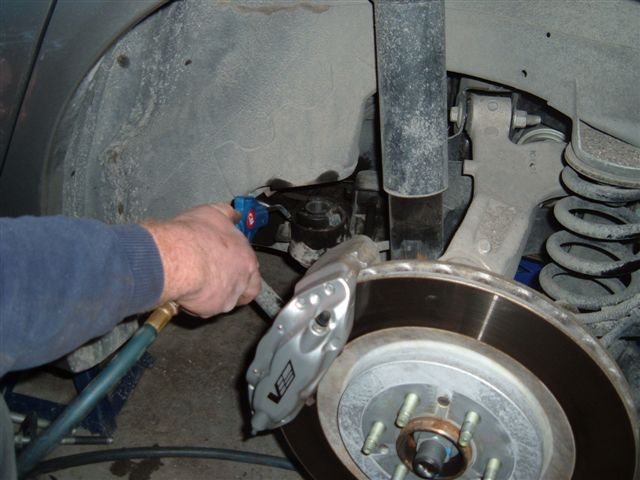

6. Un-loosen cradle nuts (4) total front and rear with a 21 mm socket Step (9-10)

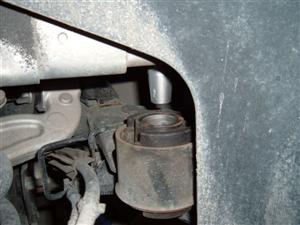

7. Lower cradle with jack low enough to install new bushings Steps (11-14)

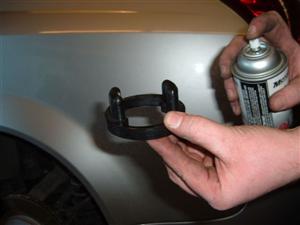

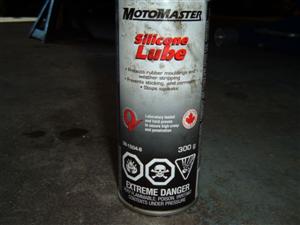

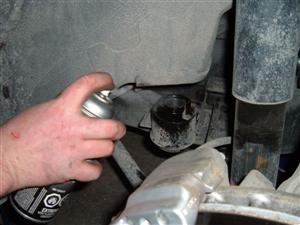

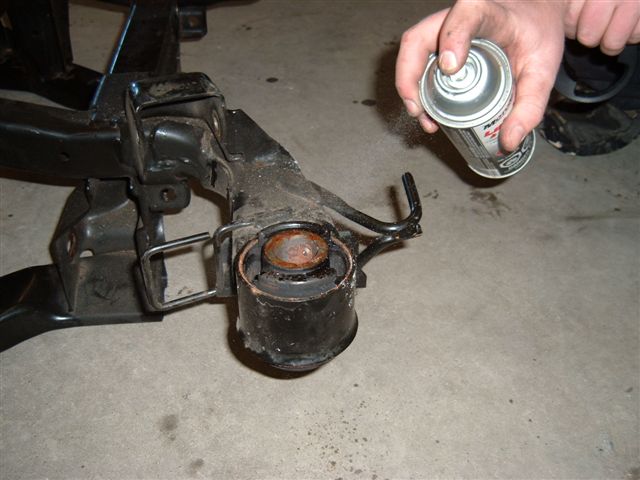

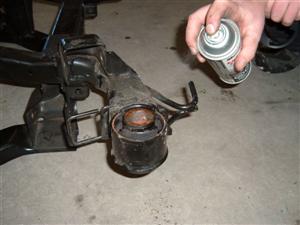

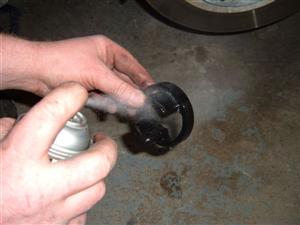

8. Spray supplied bushings and mating surfaces with a high quality silicone Steps (11-14)

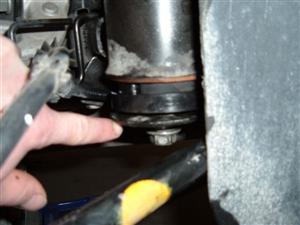

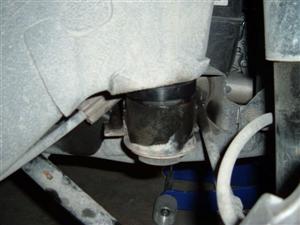

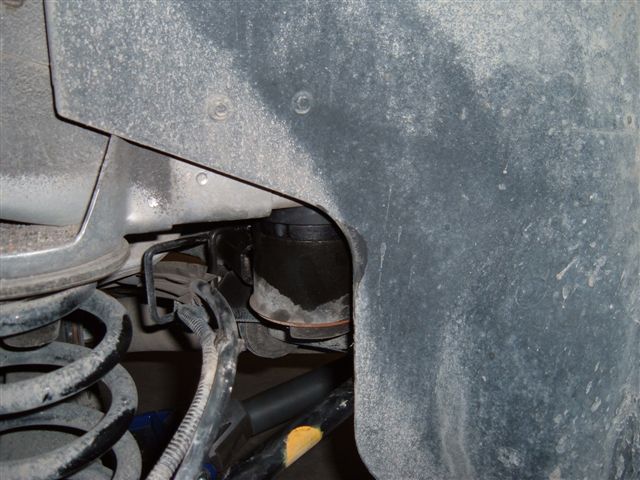

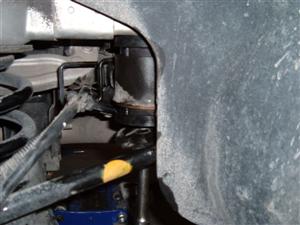

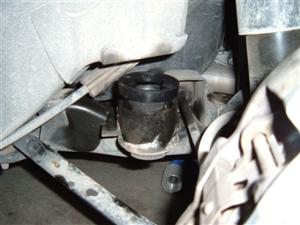

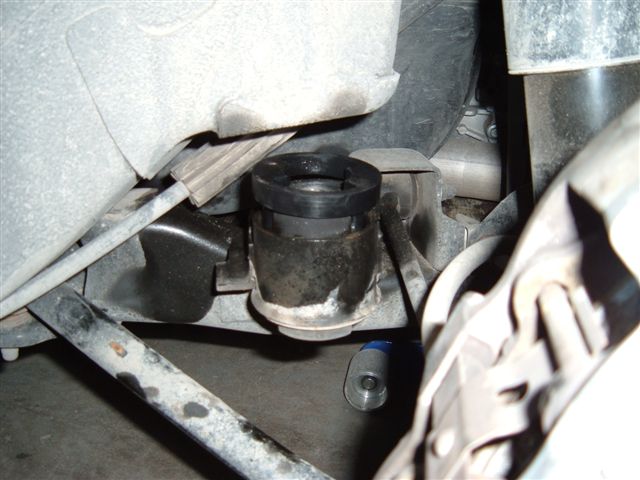

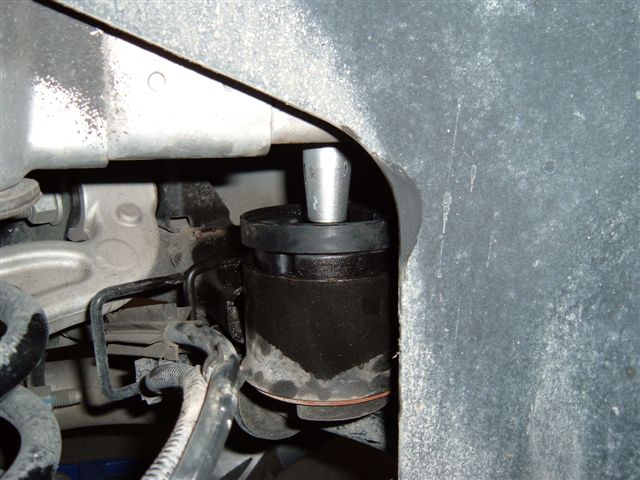

9. Install upper supplied cradle bushings. Raise cradle back up to its stock position. Once again making sure you have coated the bushings with Silicone Steps (15-24)

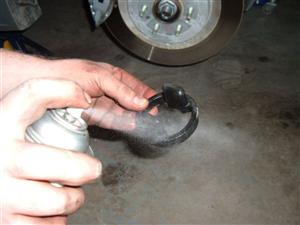

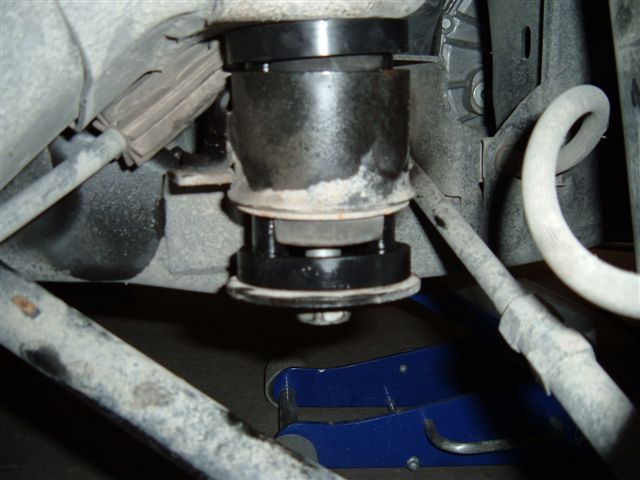

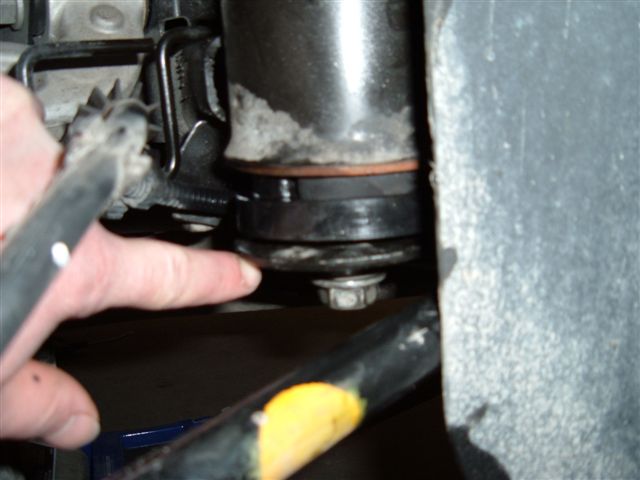

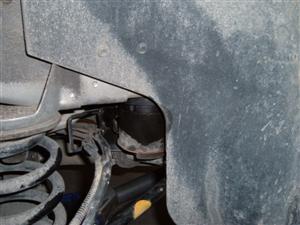

10. Coat lower set of bushings and install Steps (25-29)

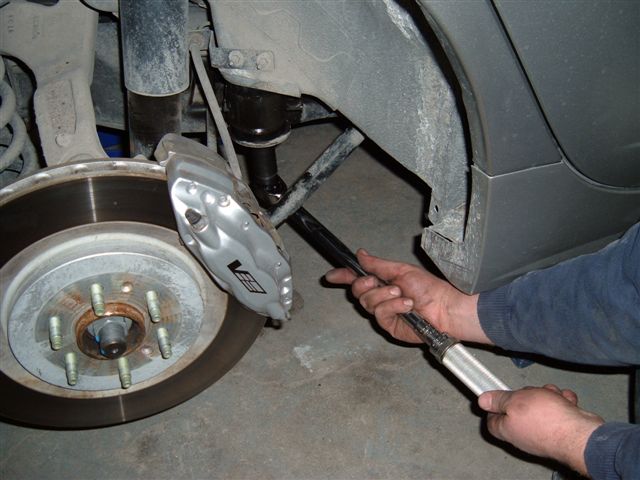

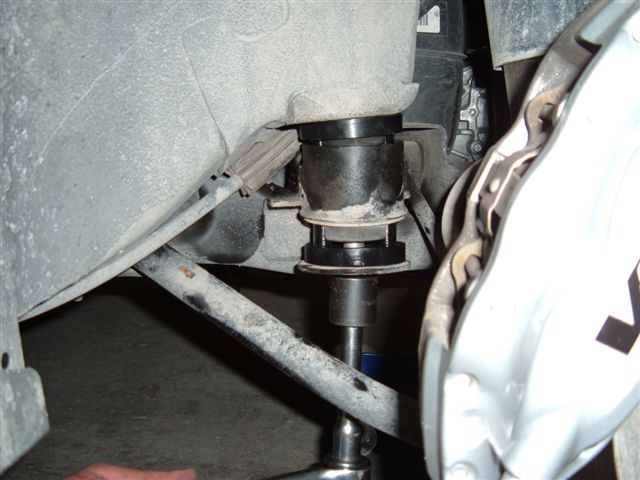

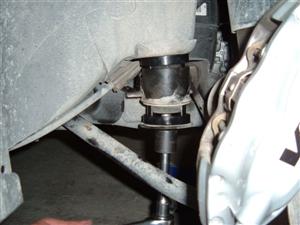

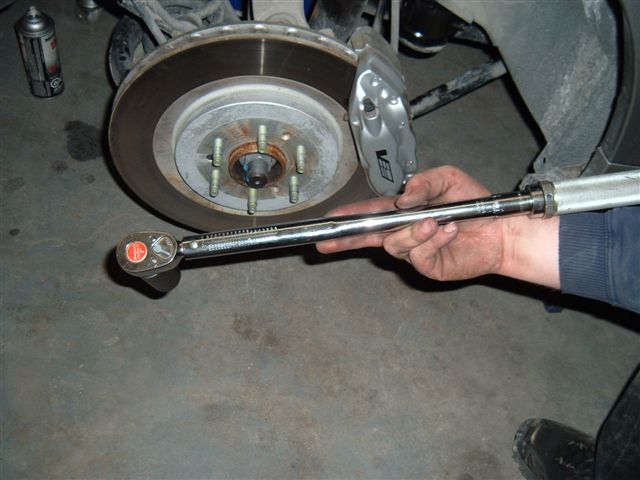

11. Torque cradle bushings to 141 ft lbs Rear/ 195 ft lbs front- Step (31-32)

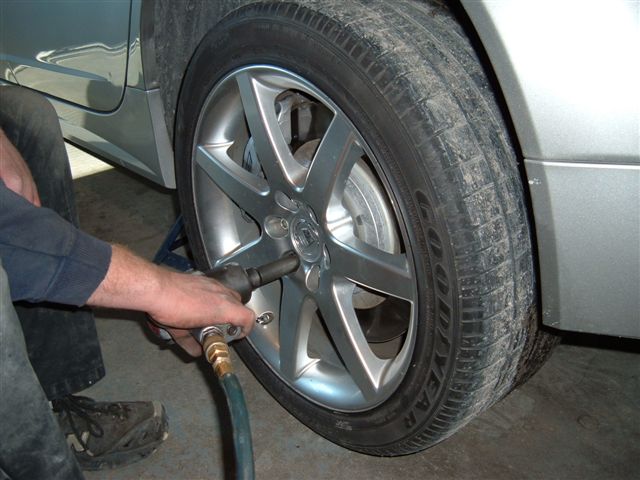

12. Install rear wheels back on car Step (33)

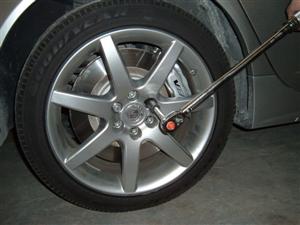

13. Set car back on ground and torque wheels to 90 Ft lbs
|
