Service manual pages

Here are some pieces of the Factory service manual. If you need more than this, shoot me an e-mail at Ctsvett@verizon.net

Driver Side Motor Mount Replacement

  • Driver Side Motor Mount Part 1 (pdf)
  • Driver Side Motor Mount Part 2 (pdf)

    Sunshade replacement

  • removal and installation

    Rear Window (and stationary Window) removal and installation

  • MAIN Rear stationary PROCEDURE
  • Trim Panel Replacement - Side Rear Door
  • Door Control Module Replacement
  • Water Deflector Replacement - Rear Door
  • Sealing Strip Replacement - Rear Door Window Belt Inner
  • Window Replacement - Rear Door
  • Sealing Strip Replacement - Rear Door Window Belt Outer

    Headlight Aiming

  • Headlight Aiming procedure

    Rear Fuse Block schematics

  • Right Rear Fuse Block schematic
  • left Rear Fuse Block Schematic

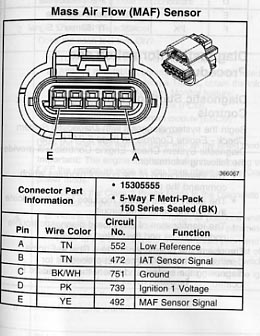

    MAF connector Wiring Diagram

  • Page 1

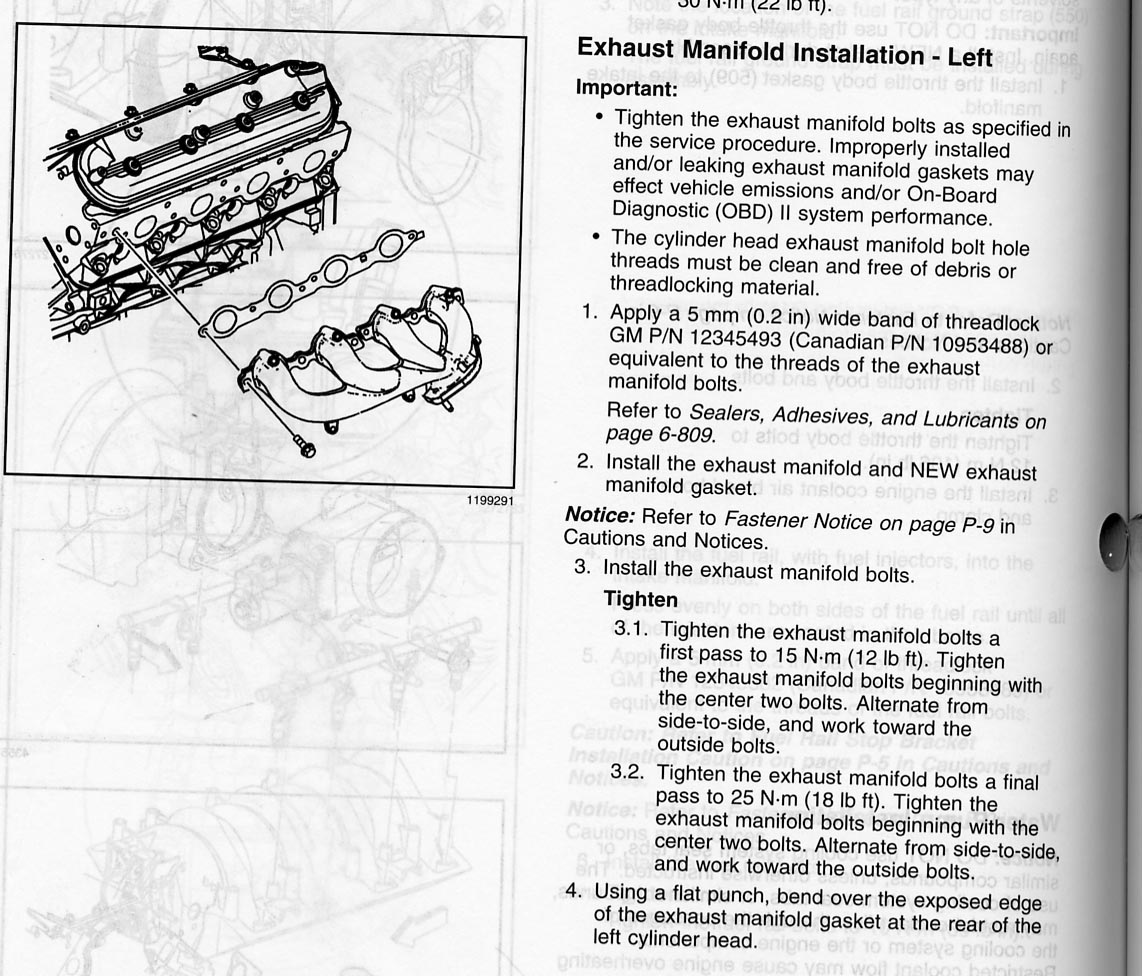

    Exhaust manifold Procedure

  • Page 1
  • Page 2
  • Page 3

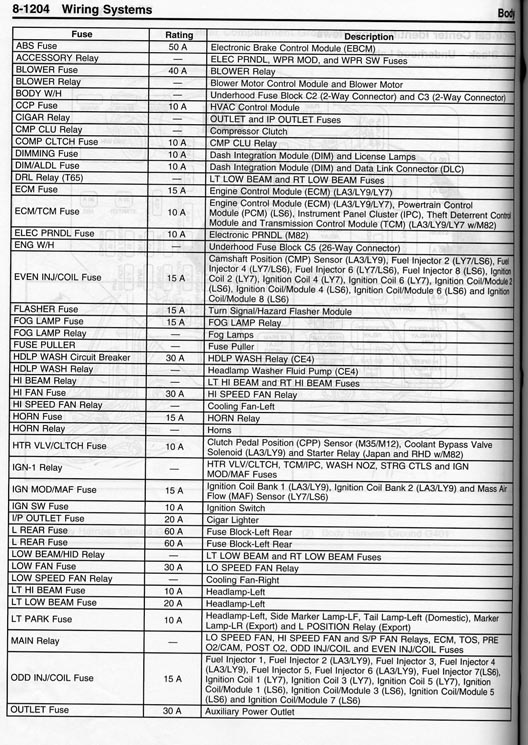

    FuseBox diagram

  • Fuse Map From Service manual
  • Description of Fusemap
  • Topview and pinout of fusemap
  • Connector C4 of Fusemap

    Interior Overhead Lamp Wiring Diagram

  • Page 1NEW

    Clutch master Cylinder replacement Procedure

  • Page 1
  • Page 2
  • Page 3

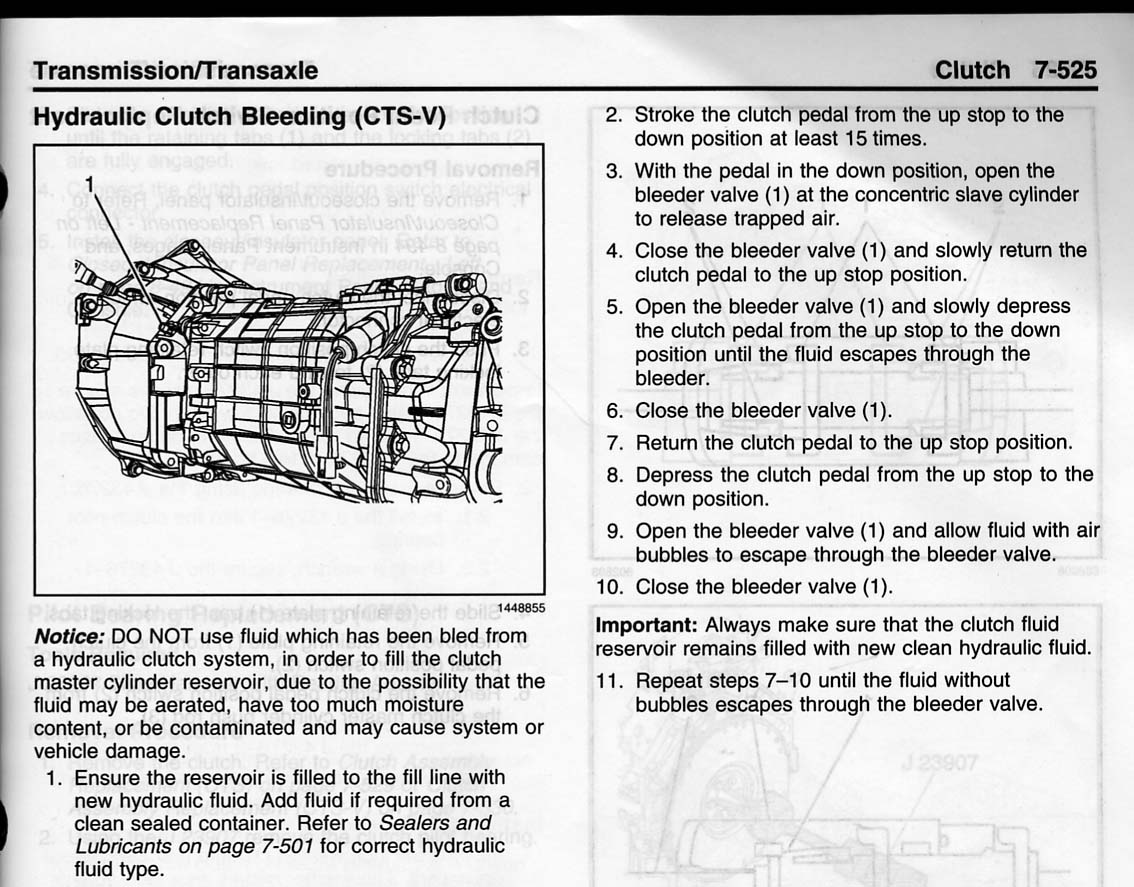

    Clutch Bleed procedure

  • Page 1

    Cluster/ oil temp Schematics

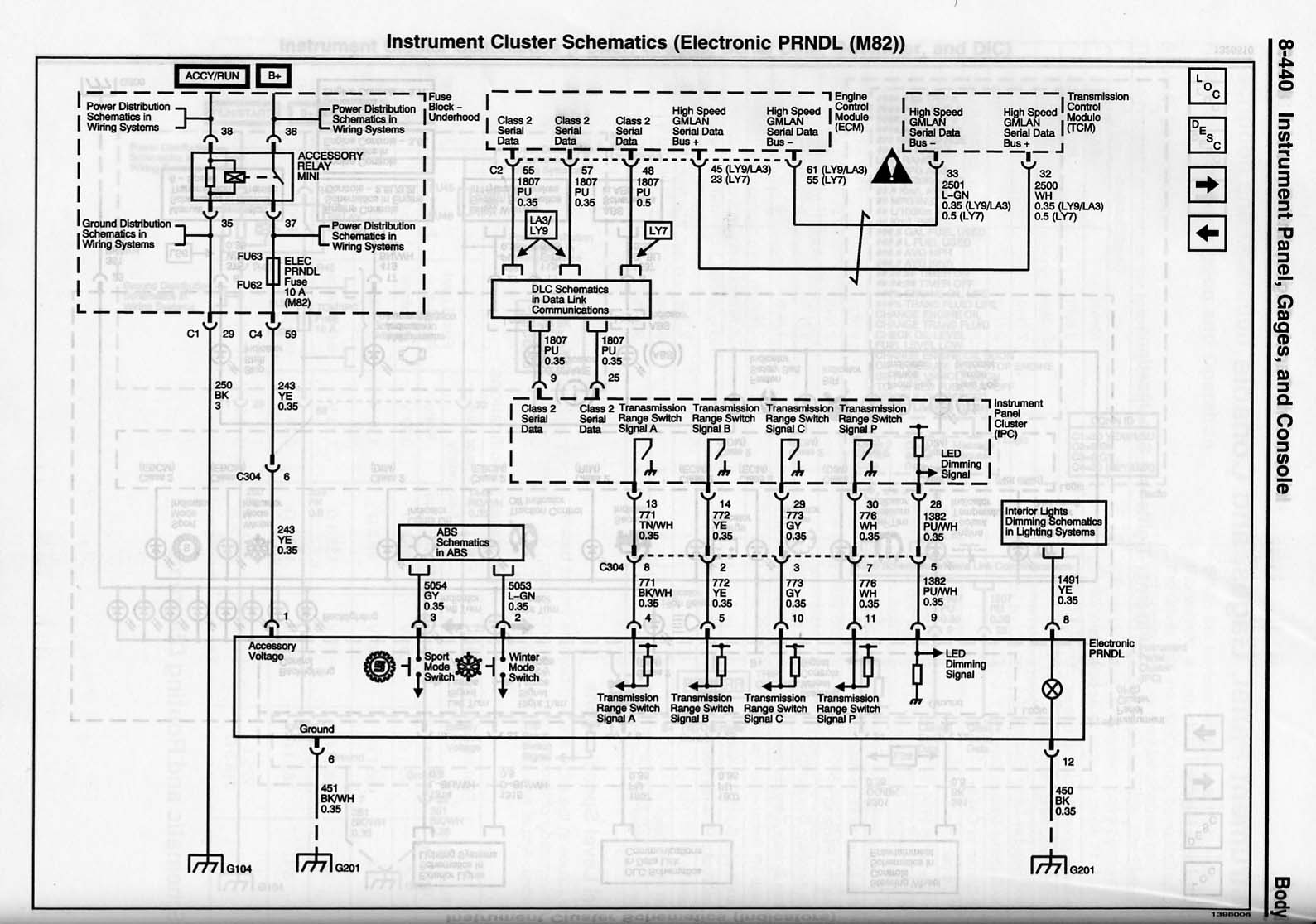

  • Cluster Schematic

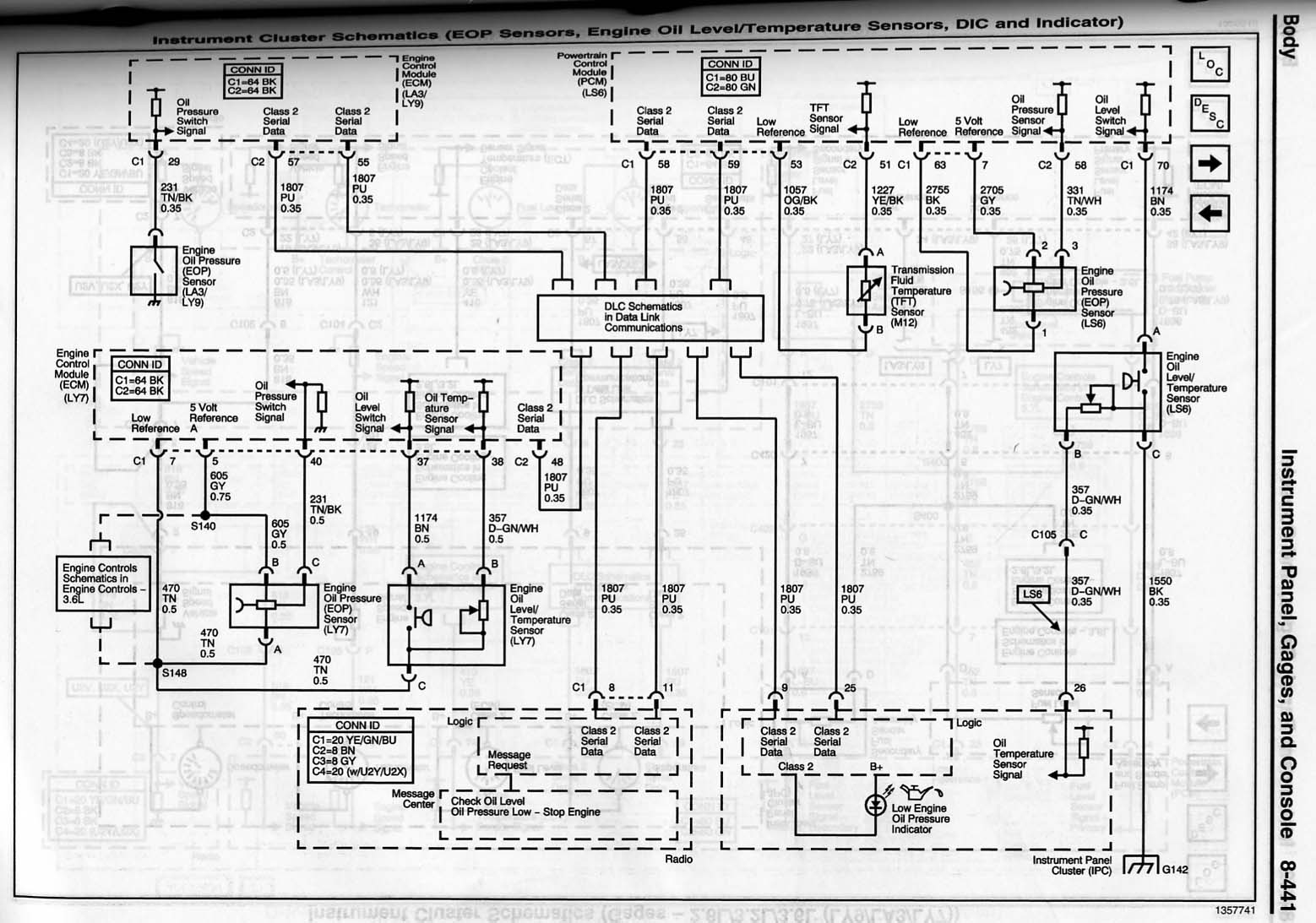

  • Oil temp Schematic

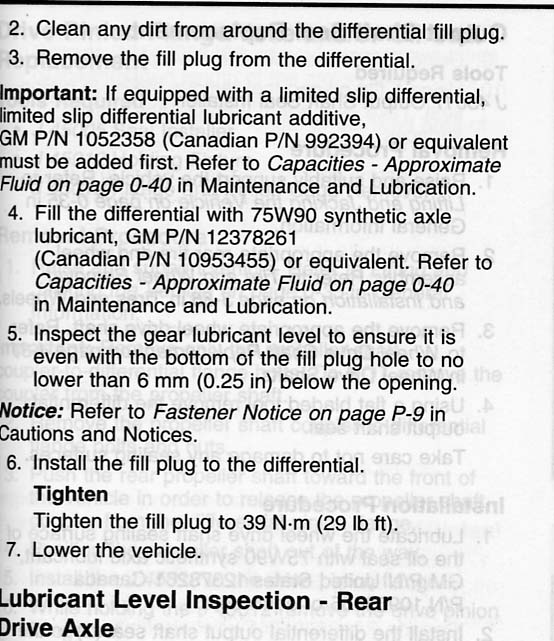

    Differential Lube Specification/ PN

  • Page 1

    RAP description

  • Page 1
  • Page 2NEW

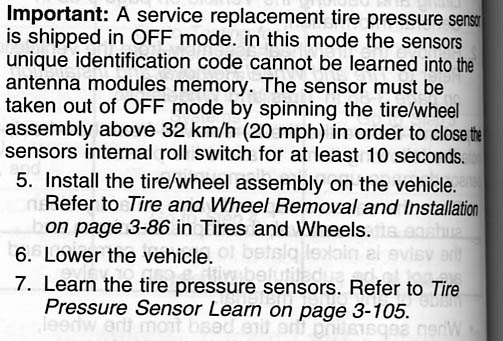

    Note on Tire pressure Senors (for winter tires)

  • Page 1

    Rear Differential Symptoms

  • Page 1
  • Page 2
  • Page 3

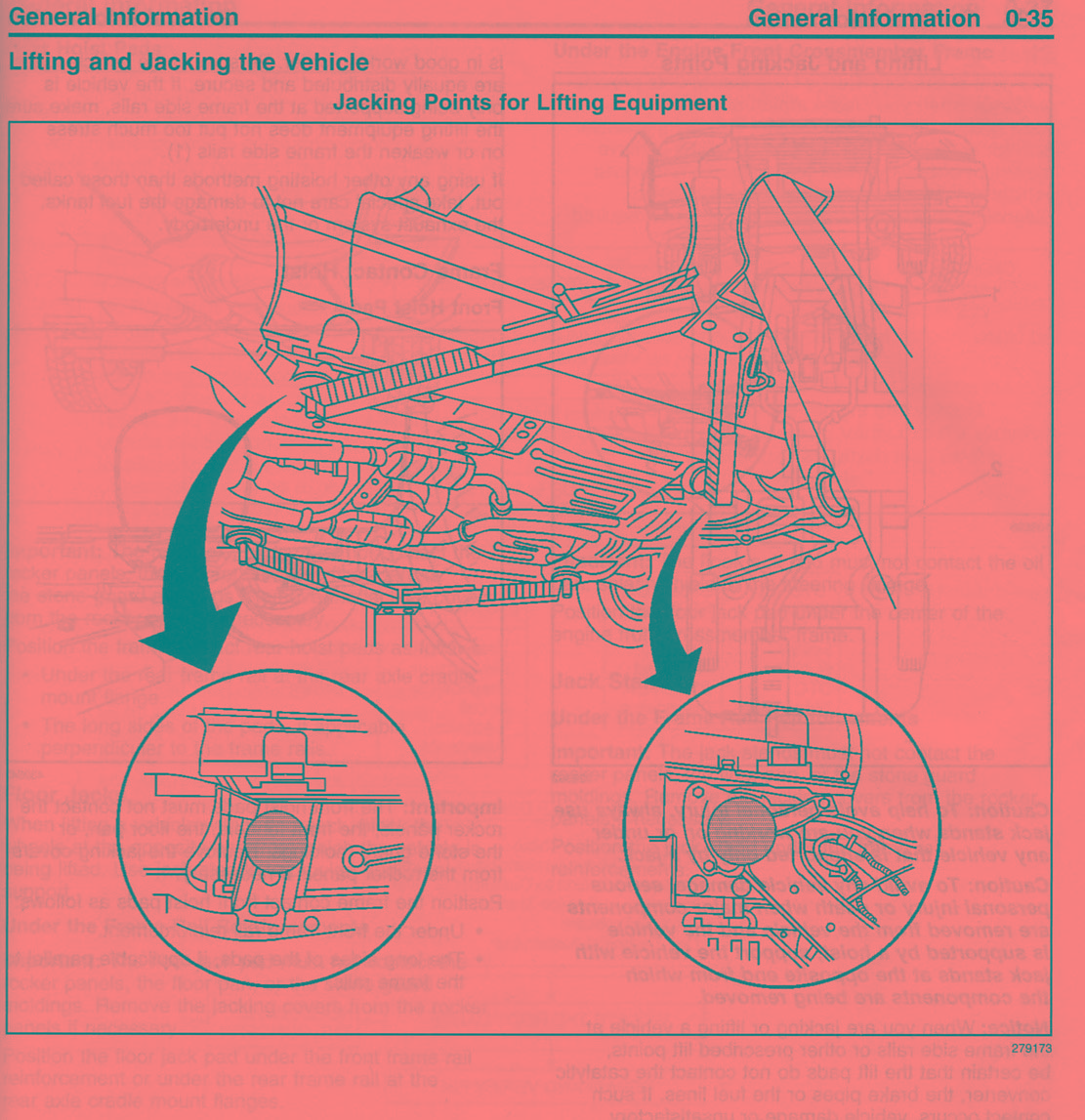

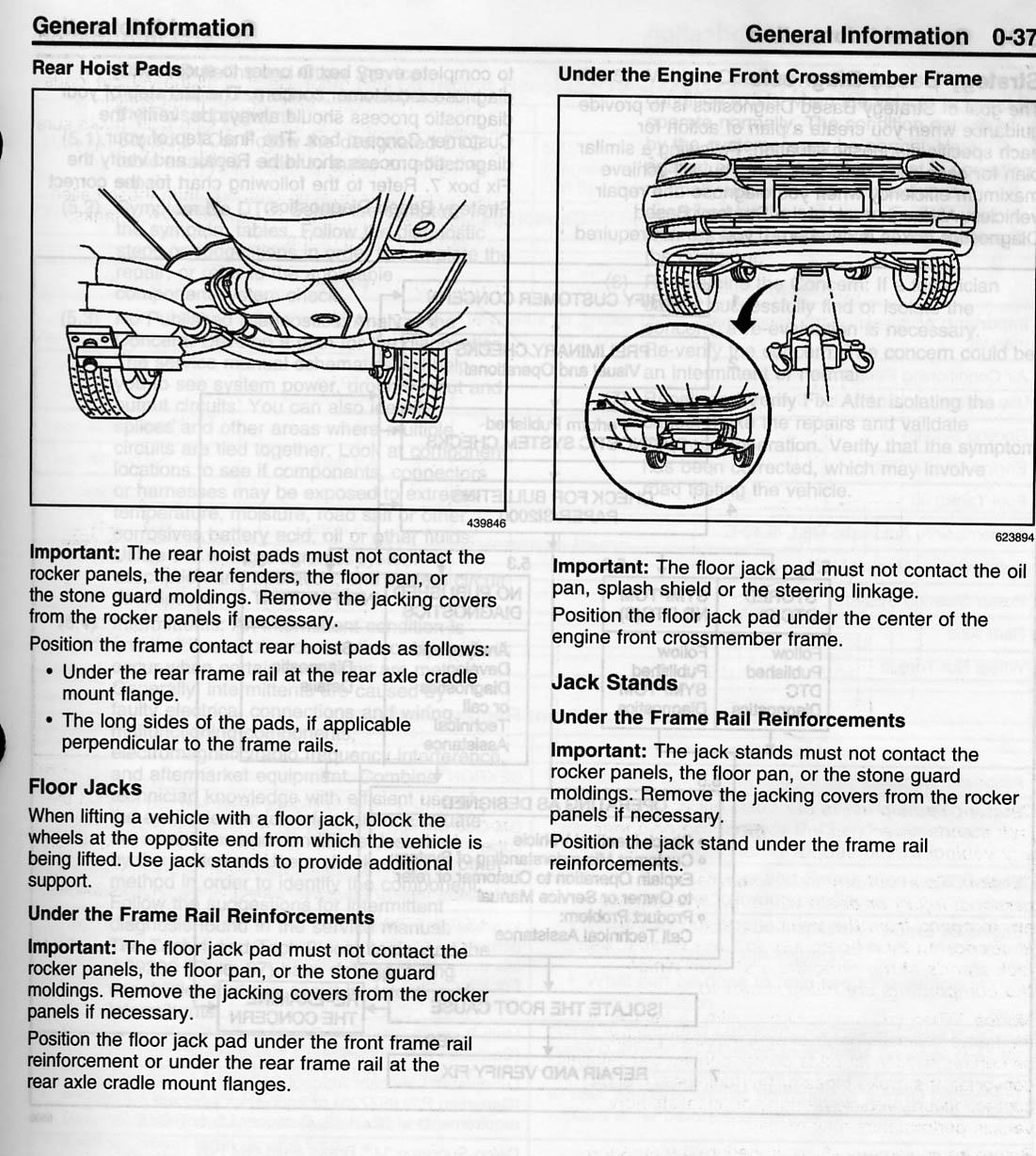

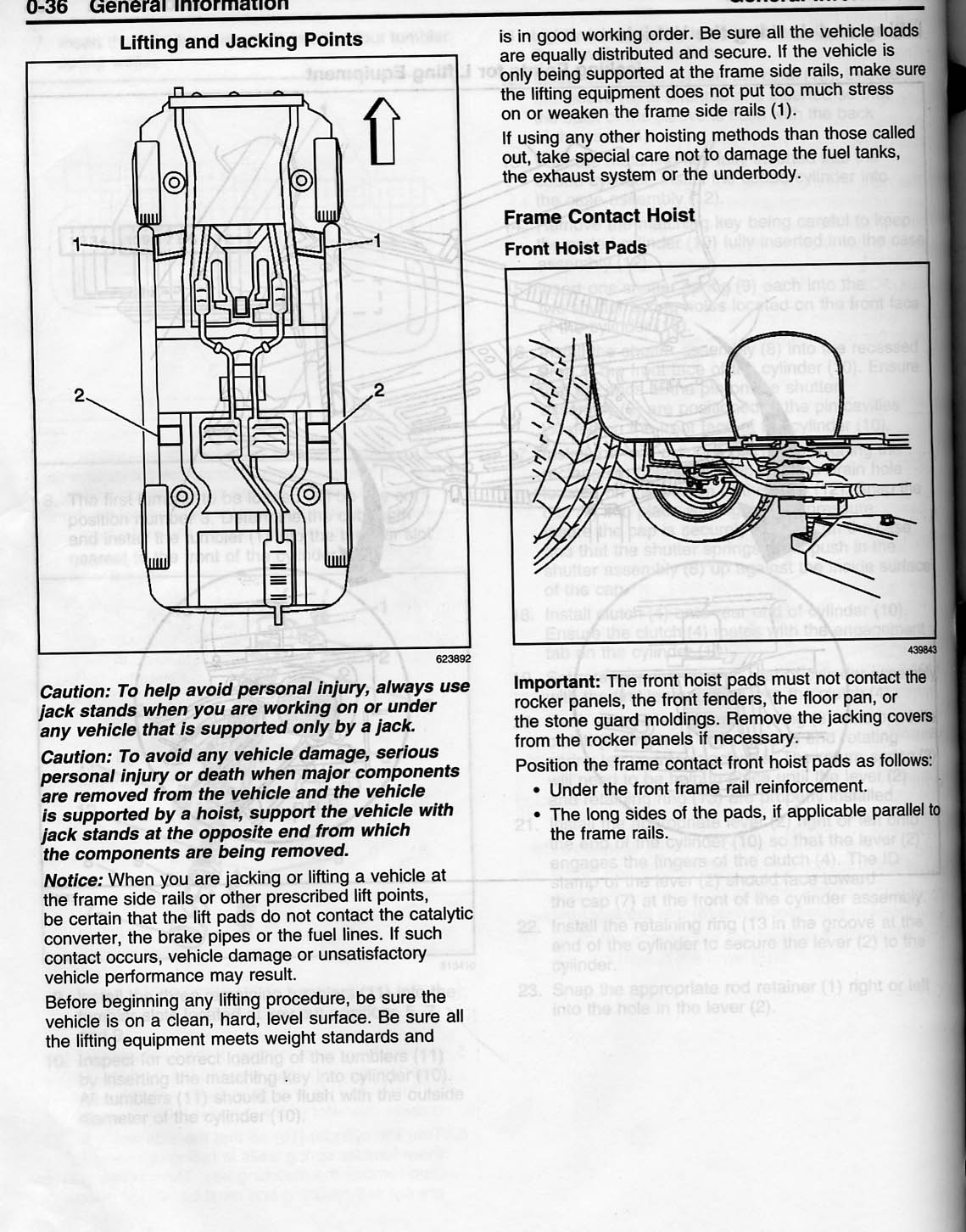

    Where to jack the car from

  • Page 1
  • Page 2
  • Page 3

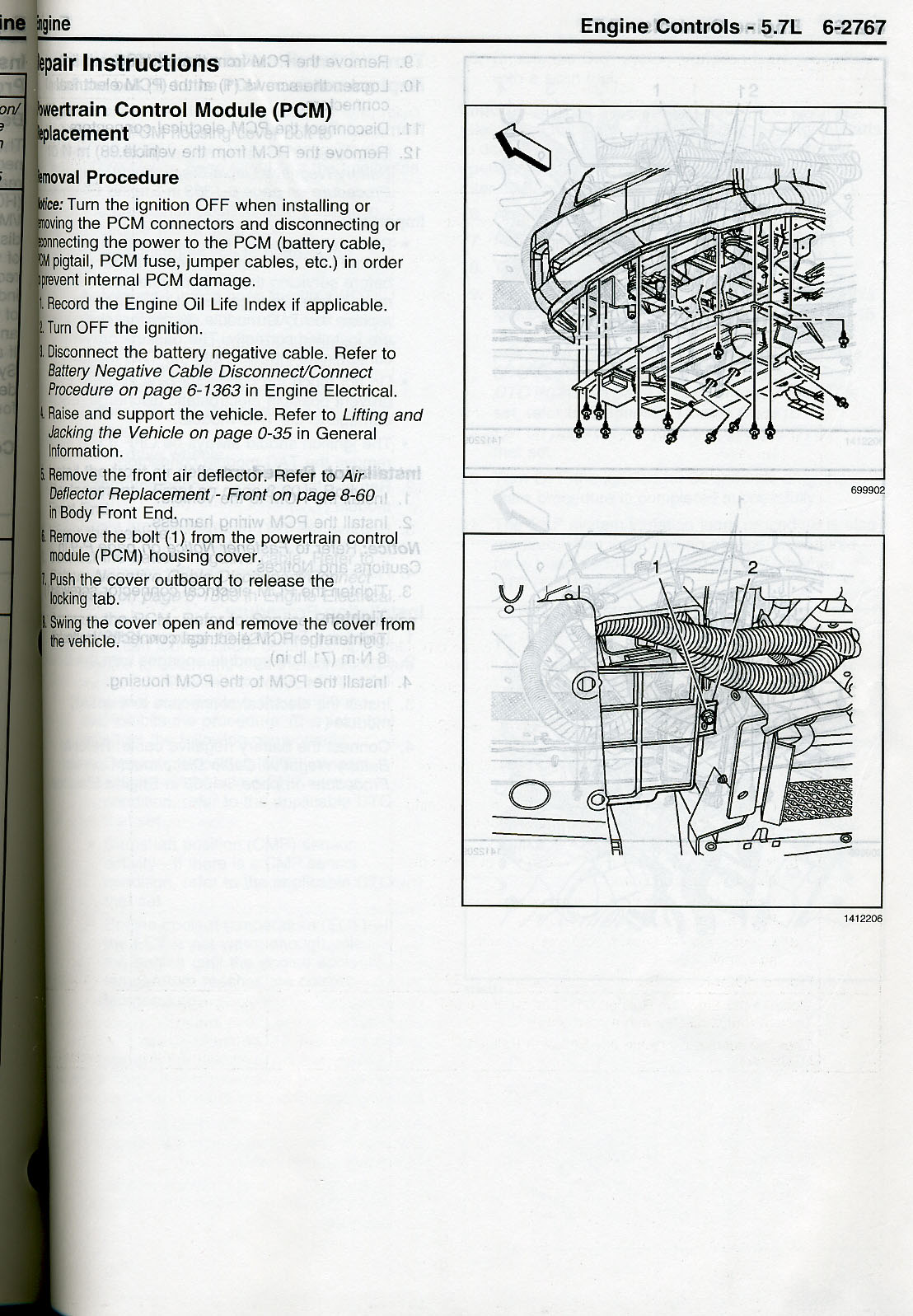

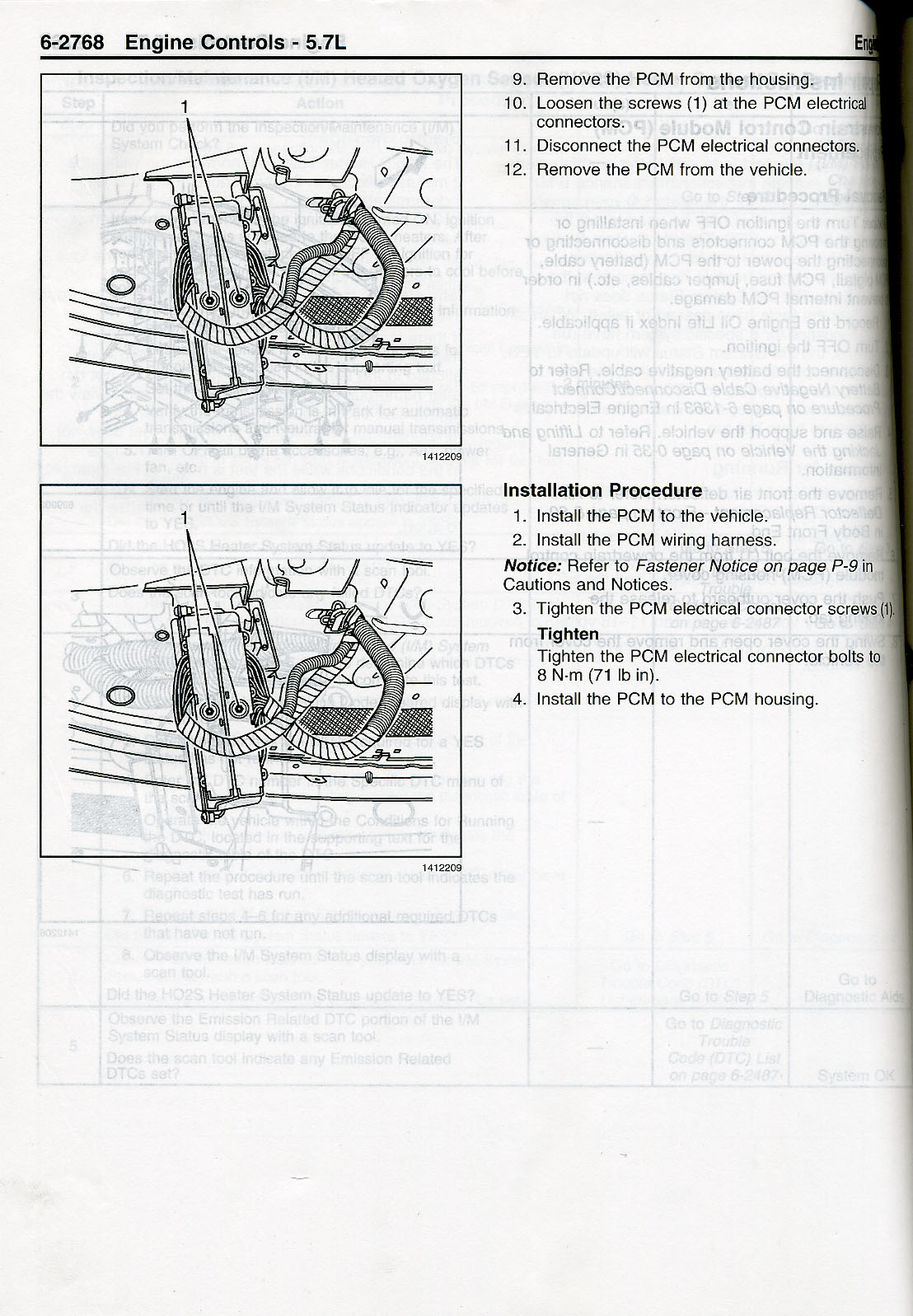

    PCM manual removal and installation

  • Page 1
  • Page 2

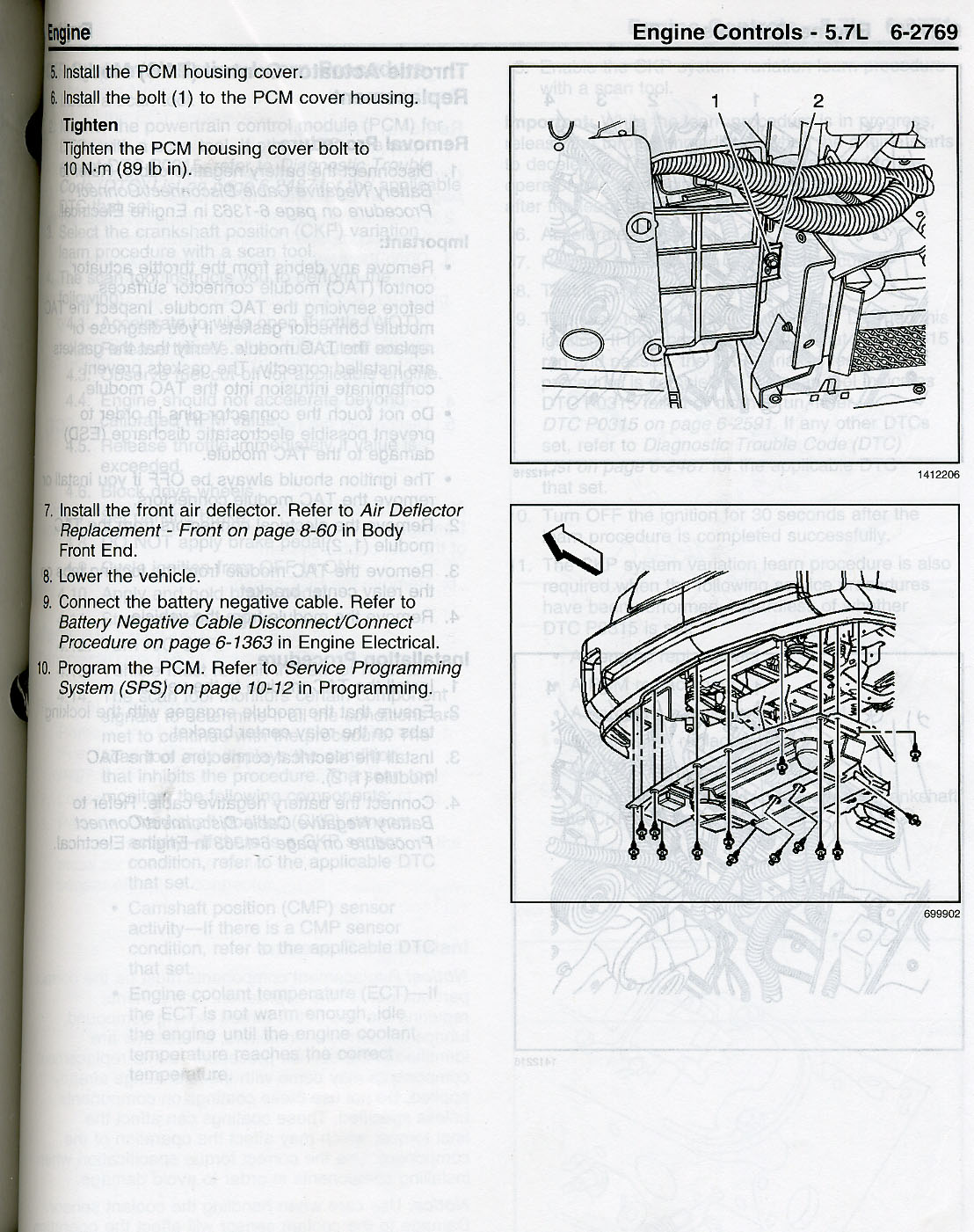

  • Page 3

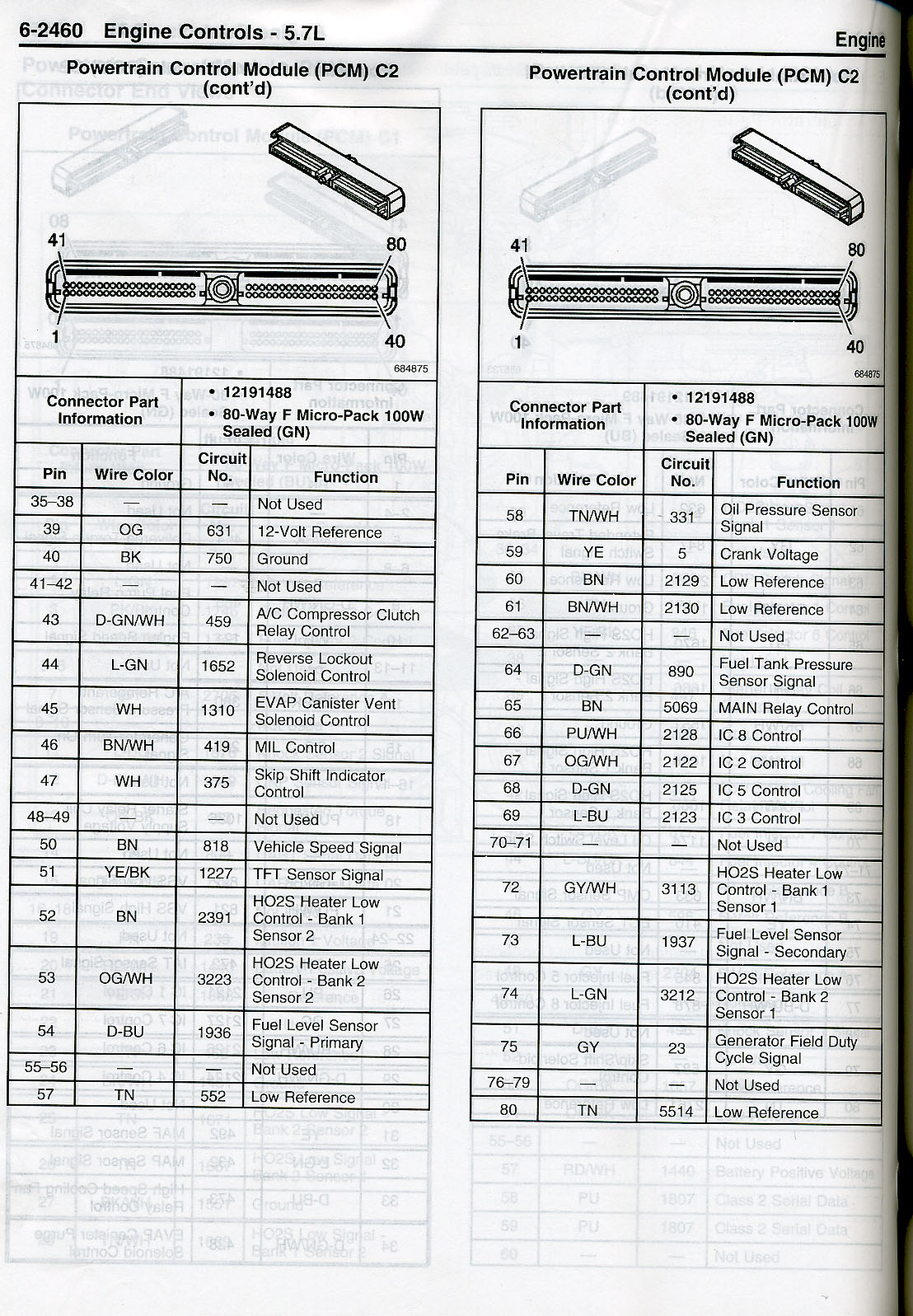

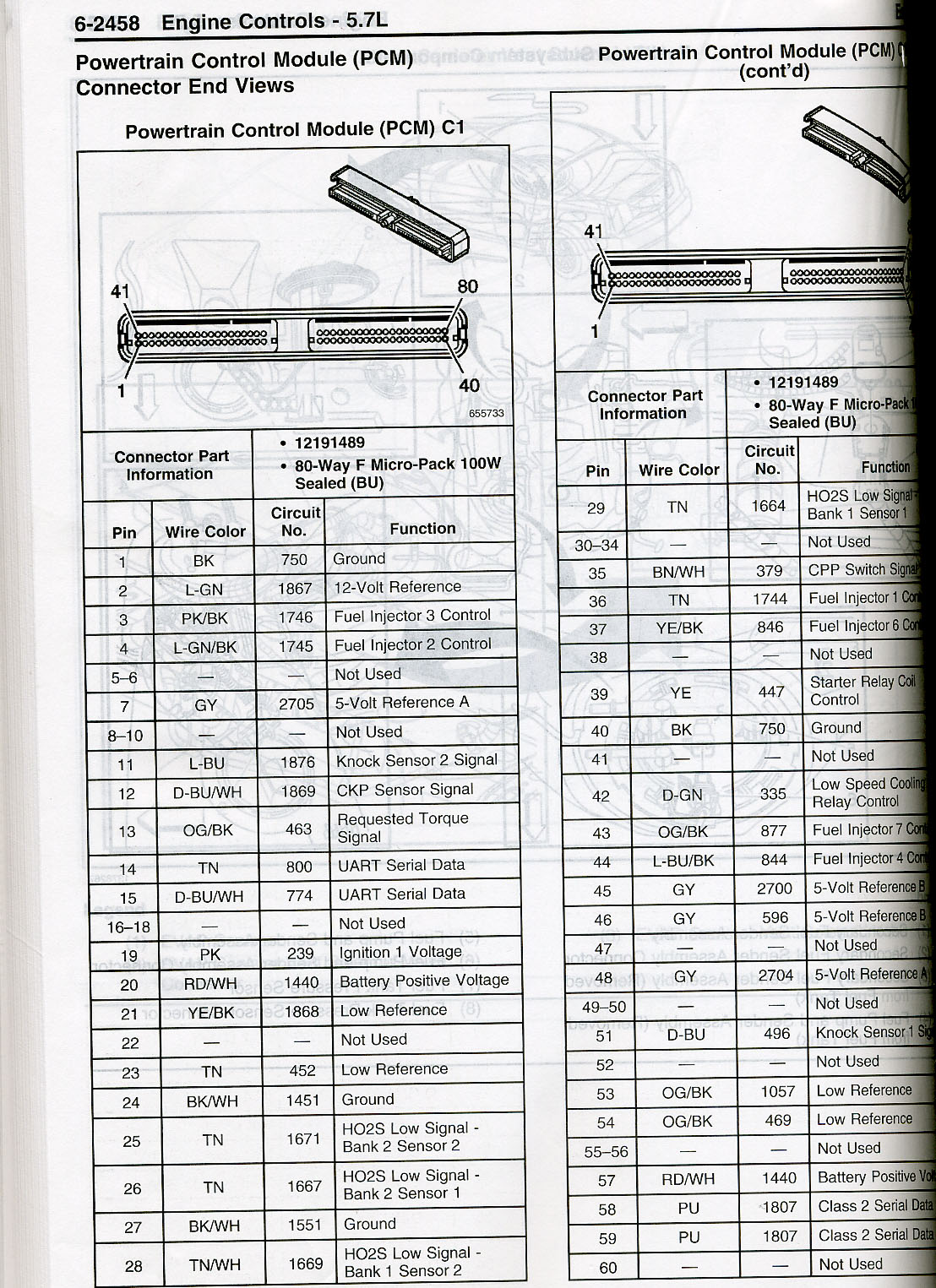

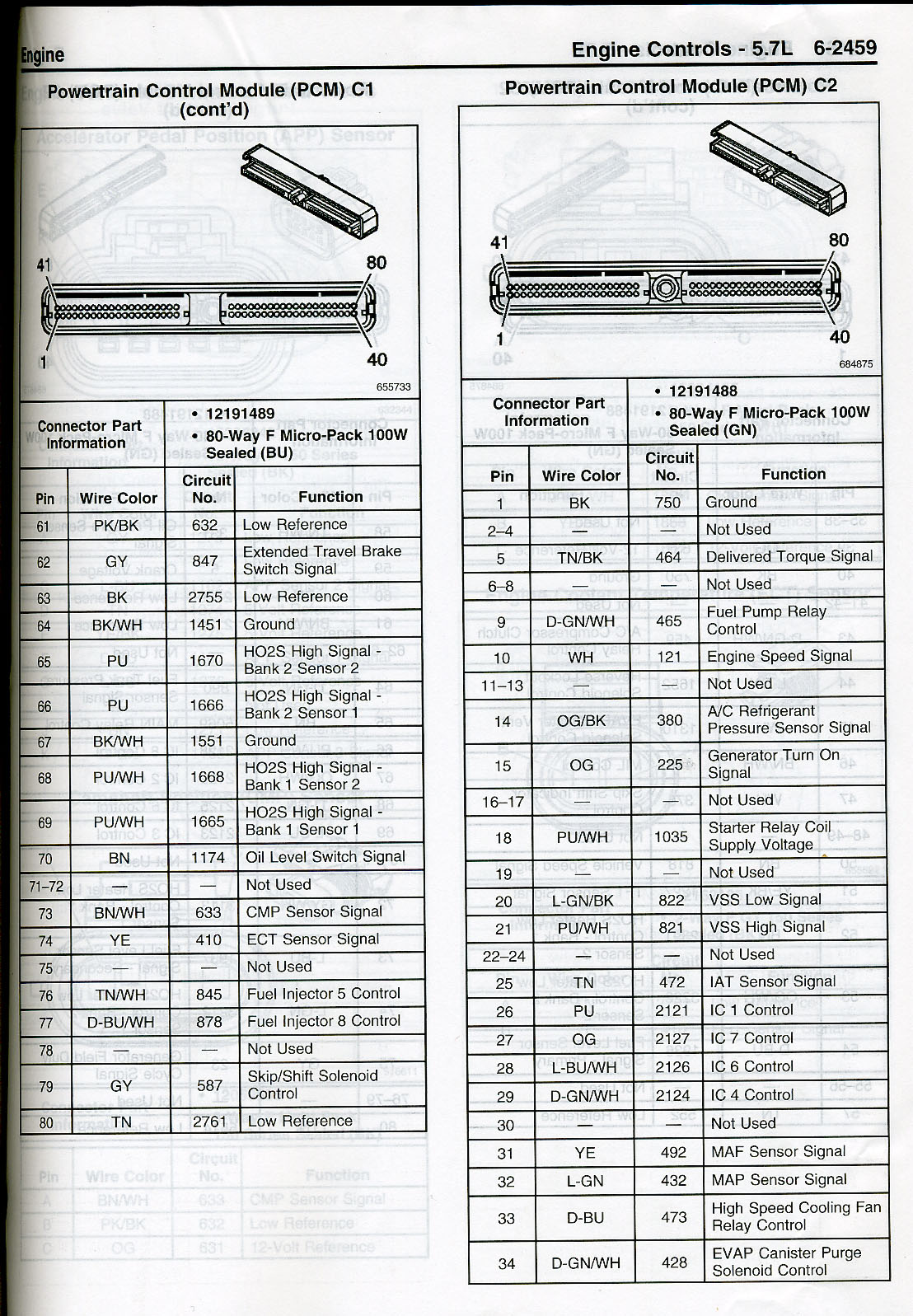

    PCM connectors

  • Page 1
  • Page 2
  • Page 3

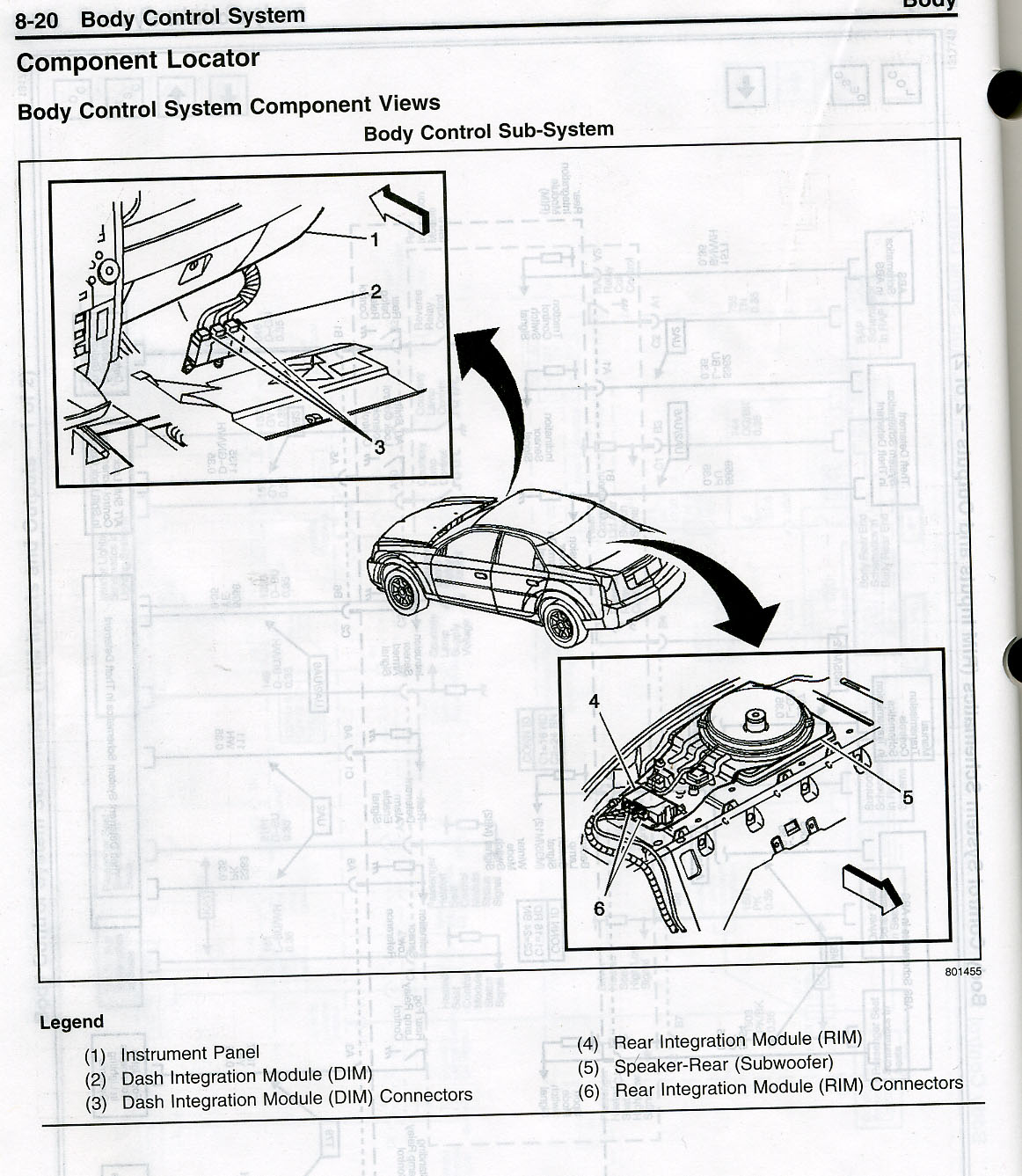

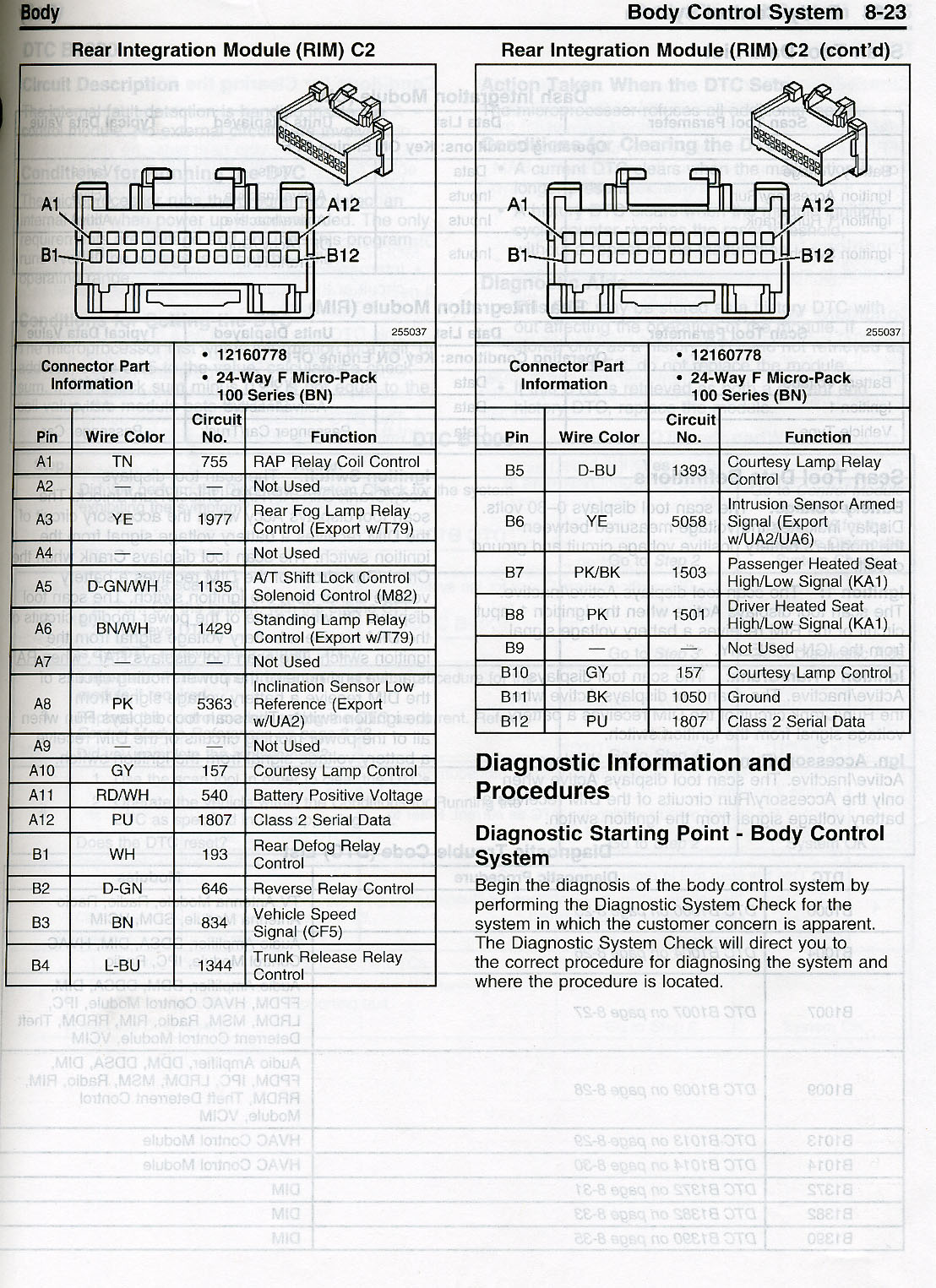

    DIM Location removal and install/ and connectors

  • Page 1
  • Page 2

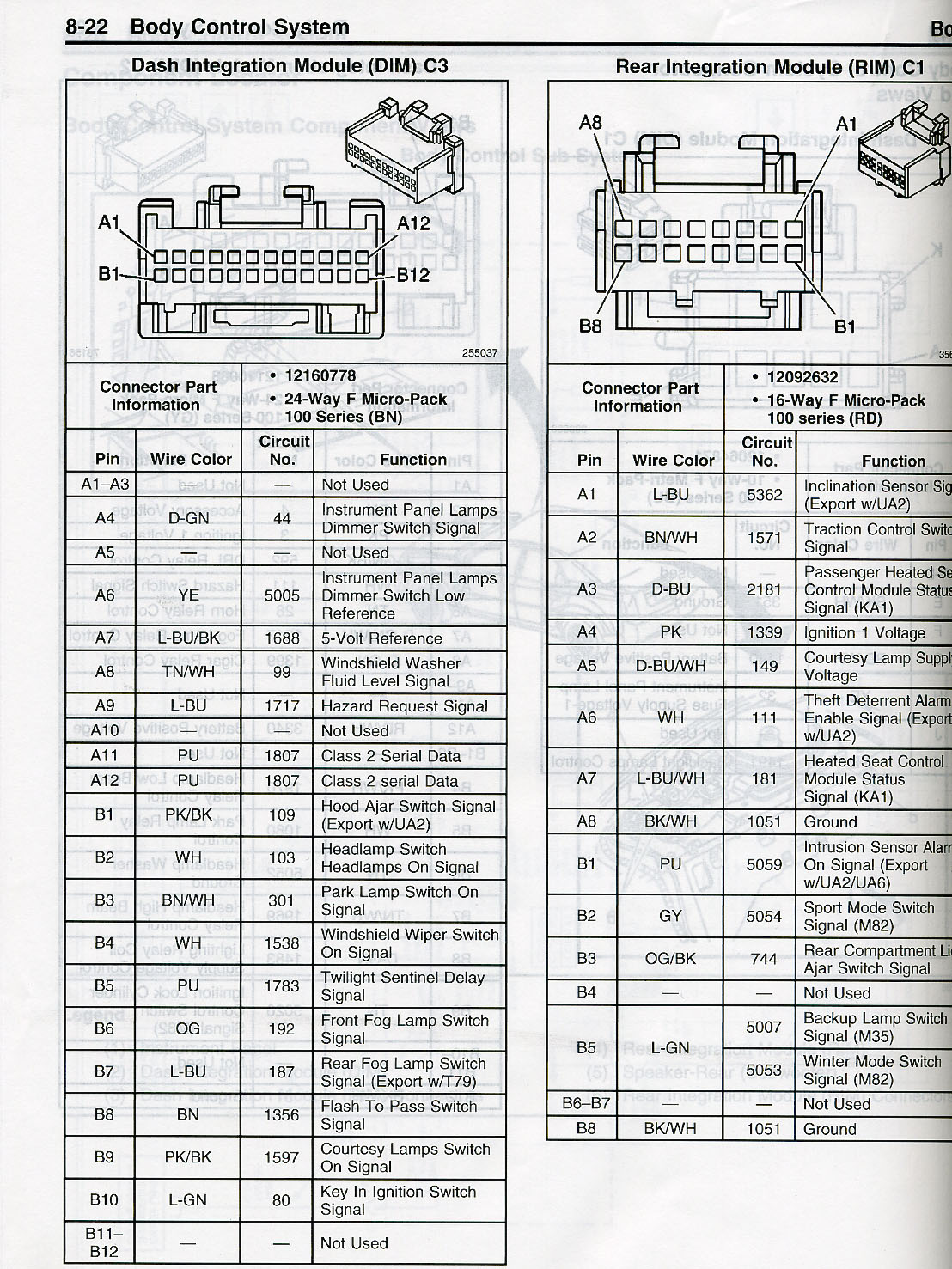

  • Page 3
  • Page 4

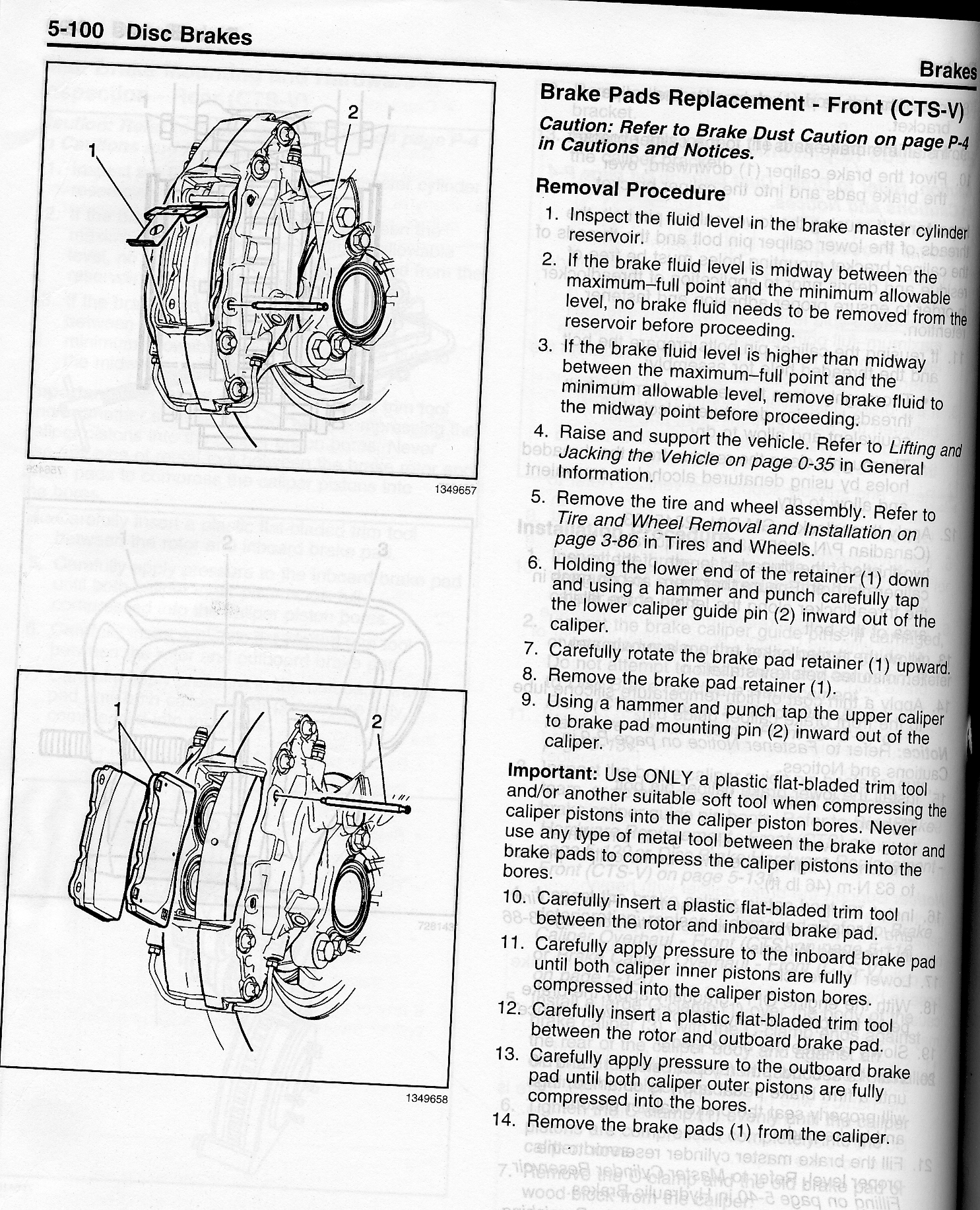

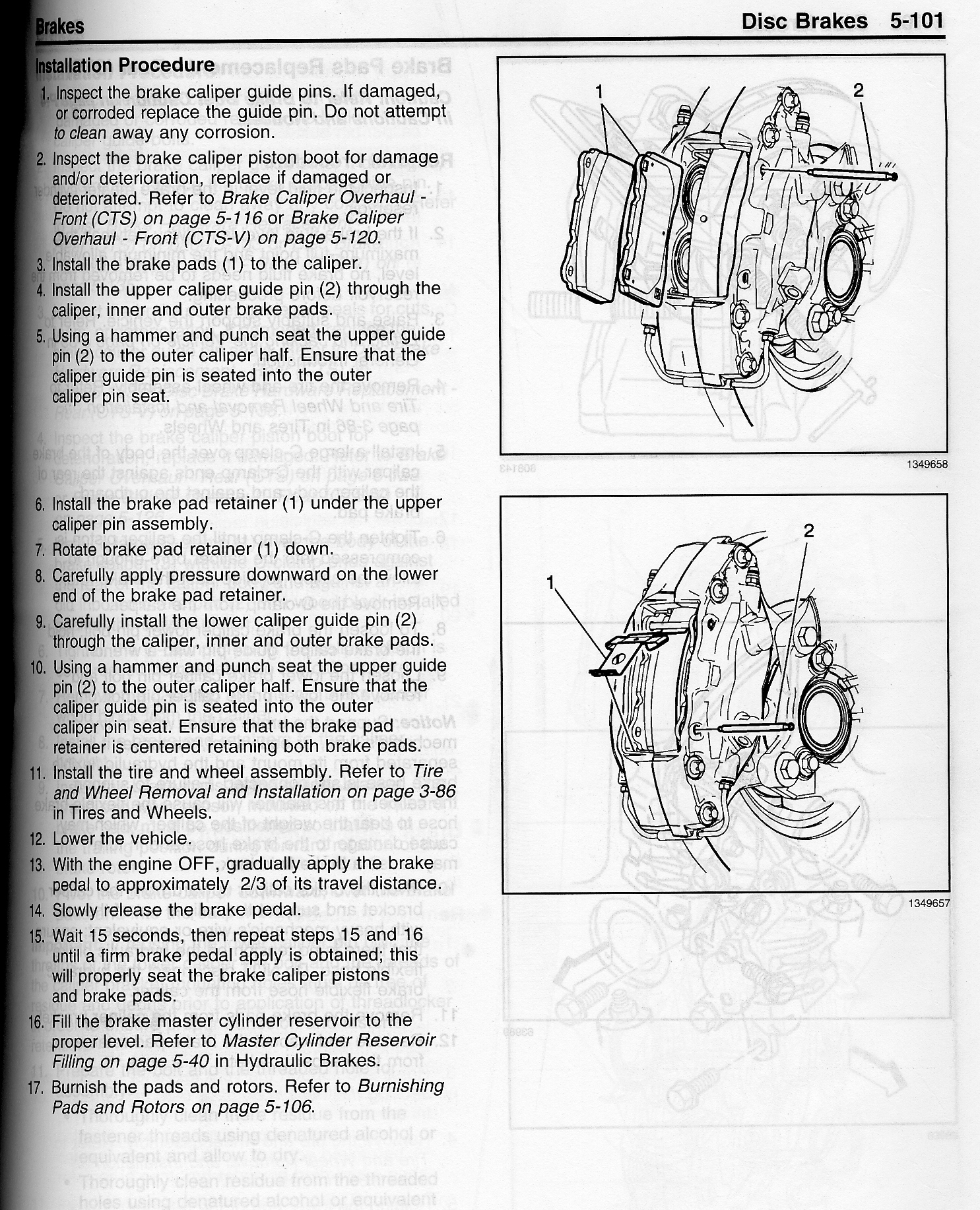

    Front Brake pad Replacement Procedure

  • Page 1
  • Page 2

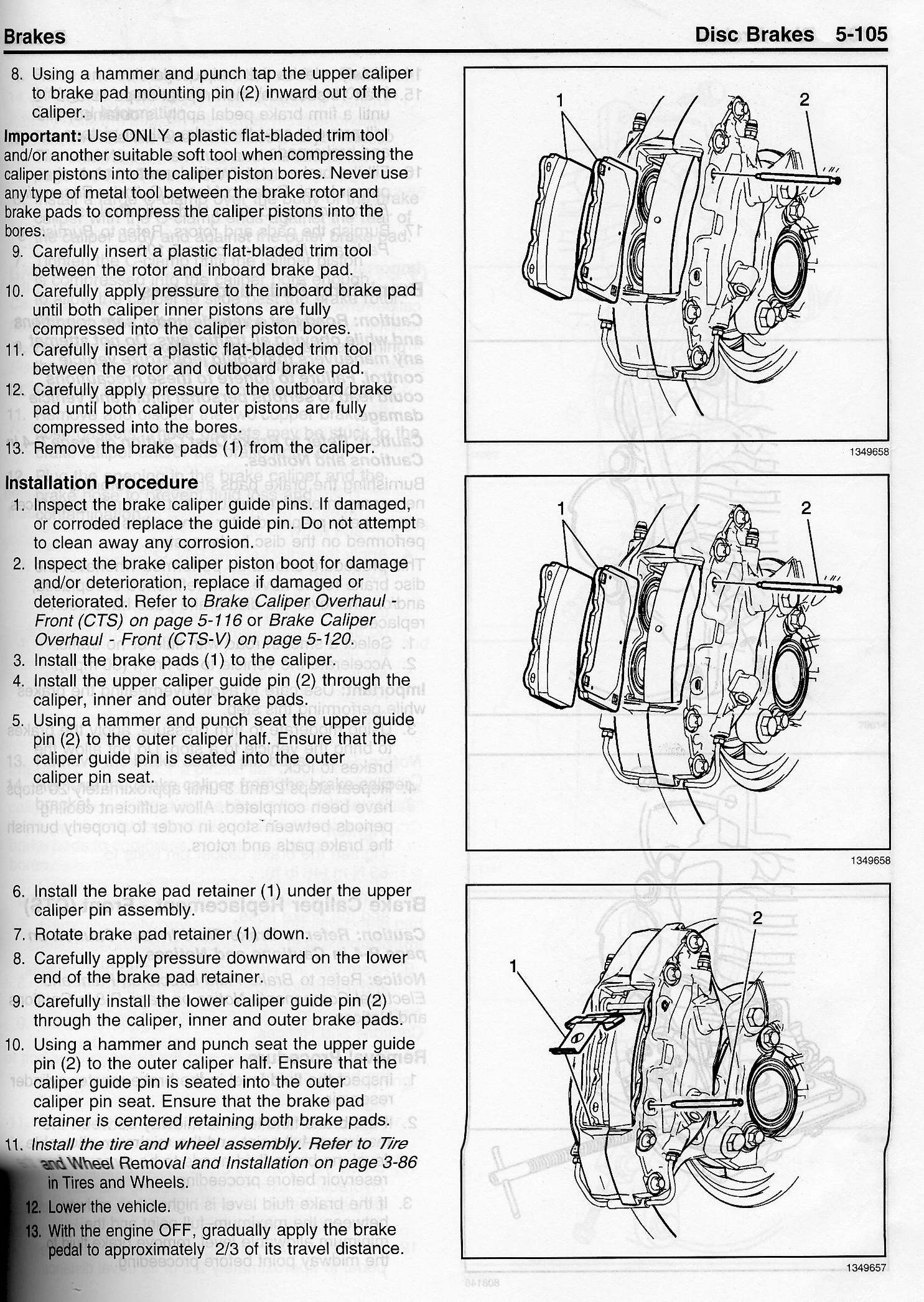

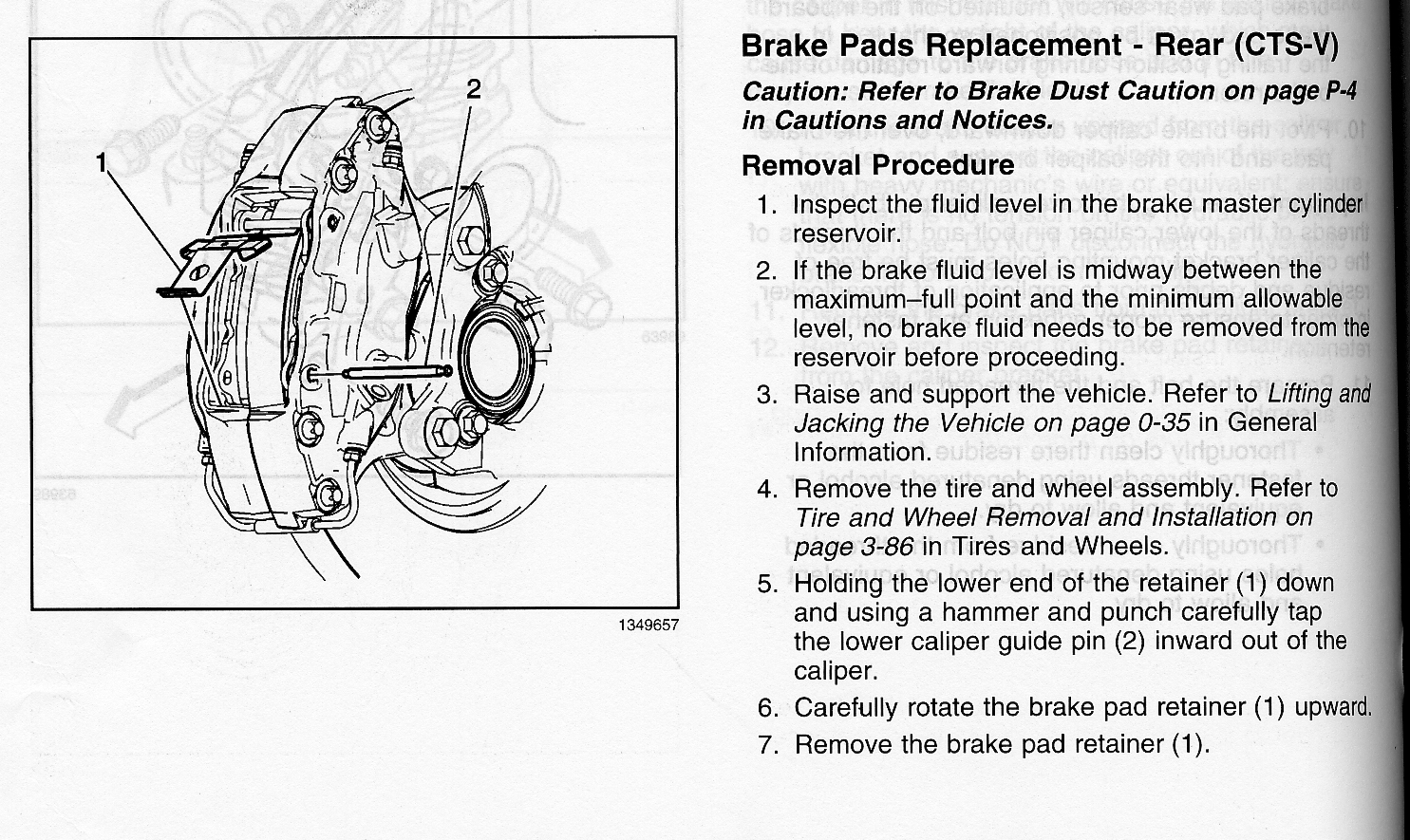

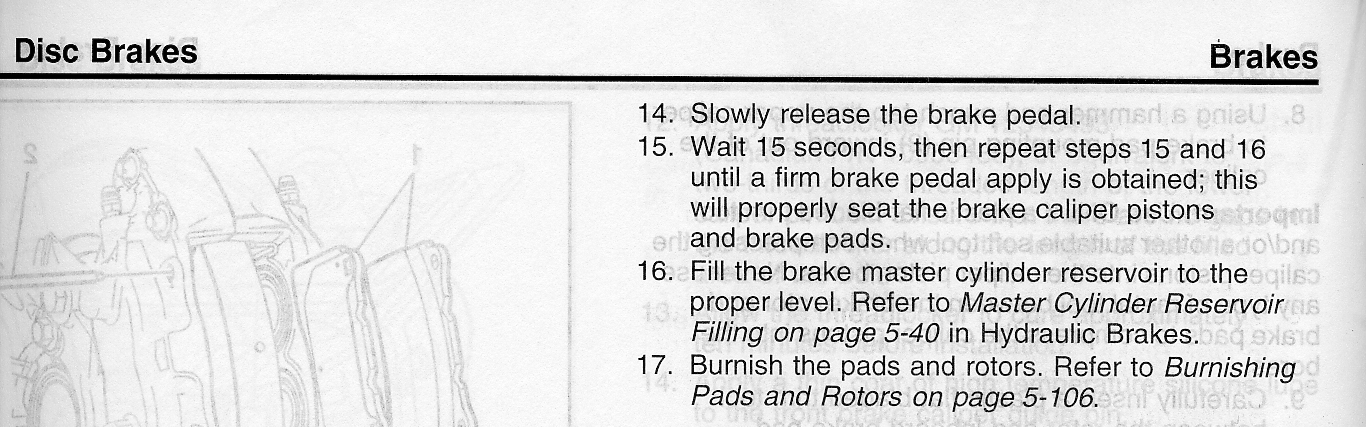

    Rear Brake pad Replacement Procedure

  • Page 1
  • Page 2
  • Page 3

    FogLamps Schematic

  • Page 1
